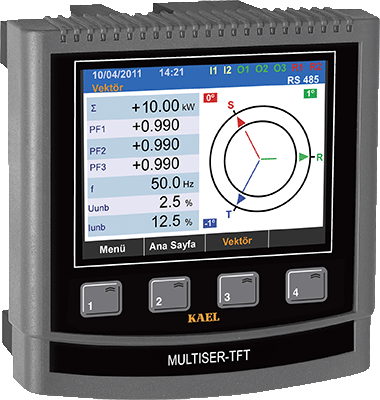

MULTISER-53-PC-TFT Şebeke Analizörü
%30
Discount
179,22 USD + VAT
307,23 USD
Transfer
215,06 USD
Contact us for purchases over 200kg and 15.000 EURO
| MULTISER-53-PC-TFT Network Analyzer | |
| Connection | there is |
| Voltage V1,V2,V3 | 1-300 Vac; 0.5 class |
| Voltage:V12,V23,V31 | 2-600 Vac; 0.5 class |
| Current:I1,I2,I3,I neutral | 2mA-6A;0.5 class |
| Active Power:P1,P2,P3 | 1 class |
| Reactive Power:Q1,Q2,Q3 | 2 classes |
| Cos1,Cos2,Cos3 | [+-0.000]-[+-1,000] |
| Imp-exp. Active Energy kWh | 1 class |
| Imp-ex Reactive Energy kVARh | 2 classes |
| Demand and Peak | there is |
| Total Harmonic:THD and THD-V | there is |
| Voltage Unbalance U% | there is |
| Current Unbalance I% | there is |
| Oscilloscope | there is |
| Harmonics | 3-63. harmonics |
| Alarms | no |
| Graphical Reports | no |
| Alarm Reporting by Date | no |
| Second Energy Meter for Generator | there is |
| Relay Output: max. 3A/240 Vac | no |
| Digital Input 5-24 Vdc max. 30Vdc | 2 pieces |
| Energy Pulse Output | no |
| Analog Output - Programming | 2 pieces |
| RS485 MODBUS-RTU | there is |
| Memory | internal memory |
| Working Hours | there is |
| Password Protection | there is |
| Operating temperature | -5 C....+50 C |
| Storage Temperature | -20 C....+70 C |
| Display Type | 3.2 inch Color TFT Display |
| Current Transformer | X/5A |
| Current Transformer Ratio | 1....5000 |
| Voltage Transformer Ratio | 1....4000 |
| Auxiliary Feeding Voltage | 85-265 Vac <4VA |
| Dimensions | 96x96x56mm |
| Parcel | 6 |
