LENZE Speed Controls
LENZE Single Phase 200 - 240 VAC Speed Controls

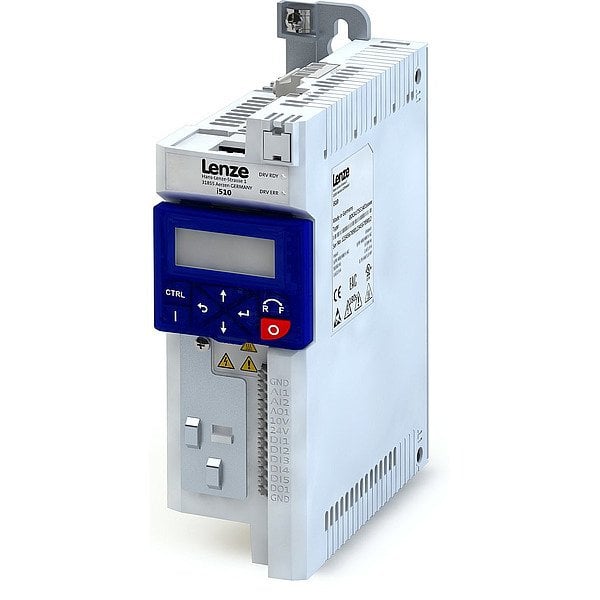

i500 Pn: 1.50 kW | Flour: 230/240 VAC | In: 7.00 A | 1 ph Speed Controller

i500 Pn: 1.50 kW | Flour: 230/240 VAC | In: 7.00 A | 1 ph Speed Controller

i500 Pn: 1.50 kW | Flour: 230/240 VAC | In: 7.00 A | 1 ph Speed Controller

i510 frequency inverters

The frequency inverters of the i510 and i550 series support the power range from 0.25 to 132 kW. The basic i510 inverter covers the power range from 0.25 to 15 kW, and the universally applicable i550, which enables communication via all common fieldbuses, covers the power range from 0.25 to 132 kW.

Both devices offer the following distinguishing features:

Slim design from 60 mm x 130 mm: fits in any control cabinet
Scalable functionality thanks to modular systems
Exceptional ease of use

The modular system allows for various product configurations depending on machine requirements. Extensions such as an add-on keypad or add-on WLAN module make commissioning and diagnostics easier. Thus, parameters can be conveniently set via a smartphone app using the WLAN module.

This reliable drive is ideal for conveyor, travel and winding drives for pumps, fans and many other machine tasks. The inverter complies with the standard EN 50598-2, which will come into force from 2020.

All the advantages of the i510 frequency inverter at a glance:

Performance data:	Mains: 1 AC 230 V: 0.25 - 2.2 kW Mains: 1/3 AC 230 V: 0.25 - 5.5 kW Mains: 3 AC 400 V: 0.37 - 15 kW
Integrated functions:	V / f characteristic control linear / quadratic (VFC plus) Sensorless vector control (SLVC) Energy saving function (VFC-Eco) Sensorless vector control for synchronous motors DC braking Brake management for low-wear brake control S ramps for smooth acceleration and delay Flying restart circuit, PID controller
Communication:	CANopen, Modbus RTU
Approvals:	CE, UL, CSA, EAC, RoHS2, IE2 according to EN 50598-2
Efficiency class:	Highest efficiency class for inverters with IE2 according to EN 50598-2
