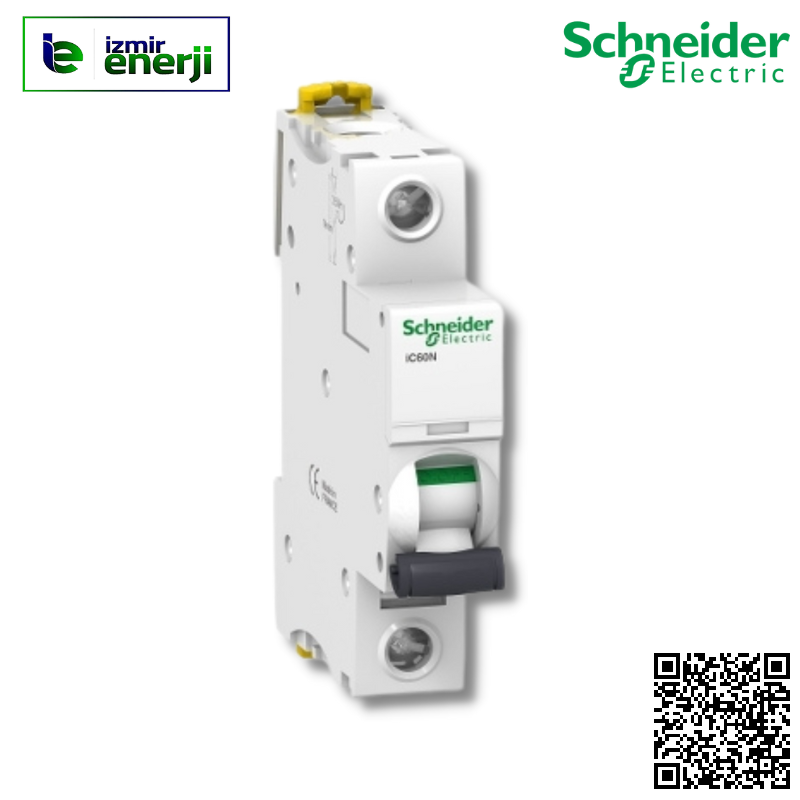

A9F74104 1x4A iC60N 6 kA, C Curve MCB
%25
Discount
7,73 USD + VAT
12,36 USD
Transfer
9,27 USD
Contact us for purchases over 200kg and 15.000 EURO
| device app | Distribution | |
|---|---|---|
| sherry | Acti 9 | |
| Name of the product | Acti 9 iC60 | |
| Product or component type | miniature circuit breaker | |
| Product group | IC60N | |
| Pole definition | 1P | |
| number of protected poles | one | |
| [In] rated current | 4 A | |
| Network type | DC HUNGRY | |
| trip unit technology | thermal magnetic | |
| slope code | C | |
| cutting capacity | 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 50 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 50 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 50 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 60...72 V DC conforming to EN/IEC 60947-2 15 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2 | |
| usage category | Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 | |
| suitability for insulation | Yes conforming to EN 60898-1 Yes conforming to EN 60947-2 Yes conforming to IEC 60898-1 Yes conforming to IEC 60947-2 | |
| standards | EN 60898-1 EN 60947-2 IEC 60898-1 IEC 60947-2 | |
| quality labels | NF |
| Mains frequency | 50/60Hz | |
|---|---|---|
| magnetic trip limit | 8 x In +/- 20% | |
| [Ics] rated service breaking capacity | 50 kA 100 % conforming to EN 60947-2 - 12...60 V AC 50/60 Hz 50 kA 100 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz 50 kA 100 % conforming to IEC 60947-2 - 12...60 V AC 50/60 Hz 50 kA 100 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz 50 kA 100 % conforming to IEC 60947-2 - 100...133 V AC 50/60 Hz 50 kA 100 % conforming to EN 60947-2 - 100...133 V AC 50/60 Hz 6000 A 100 % conforming to EN 60898-1 - 230 V AC 50/60 Hz 6000 A 100 % conforming to IEC 60898-1 - 230 V AC 50/60 Hz 10 kA 100 % conforming to EN 60947-2 - 72 V DC 10 kA 100 % conforming to IEC 60947-2 - 72 V DC 15 kA 100 % conforming to EN 60947-2 - 12...60 V DC 15 kA 100 % conforming to IEC 60947-2 - 12...60 V DC | |
| limitation class | 3 conforming to EN 60898-1 3 conforming to IEC 60898-1 | |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN 60947-2 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2 | |
| contact position indicator | Yes | |
| Control type | Transition | |
| On-device signaling | Power-on indicator | |
| Mounting type | Still | |
| mounting support | DIN rail | |
| comb busbar distribution block compatibility | Top or bottom: YES | |
| 9mm screw pitch | 2 | |
| height | 85mm | |
| Width | 18mm | |
| depth | 78.5mm | |
| Product weight | 0.215 kg | |
| colour | White | |
| Mechanical durability | 20000 cycles | |
| electrical endurance | 10000 cycles | |
| connections - terminals | Single terminal (upper or lower) 1…25 mm² rigid Single terminal (upper or lower) 1…16 mm² flexible | |
| wire stripping length | 14 mm for top or bottom connection | |
| tightening torque | 2 Nm top or bottom | |
| earth leakage protection | None |
| IP degree of protection | IP20 conforming to IEC 60529 IP20 conforming to EN 60529 | |
|---|---|---|
| degree of contamination | 3 conforming to EN 60947-2 3 conforming to IEC 60947-2 | |
| overvoltage category | IV | |
| tropical climate | 2 conforming to IEC 60068-1 | |
| relative humidity | 95 % at 55 °C | |
| working height | 0...2000 m | |
| Rated operating ambient temperature | -35…70 °C | |
| Storage ambient conditions | -40…85 °C |
